Product details

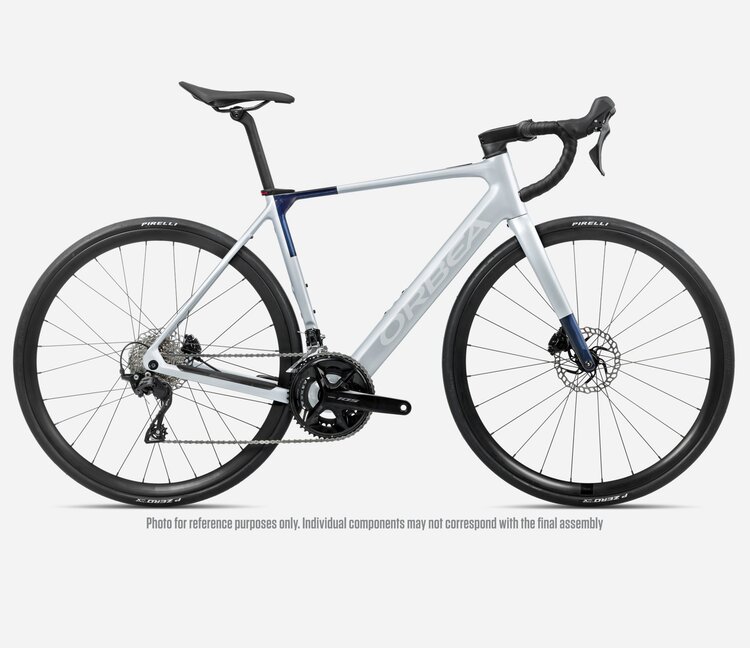

Experience the ultimate in electric road performance with the Orbea Gain M40. This lightweight electric road bike is engineered for long rides and urban commuting alike. Its lightweight carbon frame delivers excellent pedalling efficiency and precise handling, while the seamlessly integrated battery system and advanced powertrain technology provide consistent, reliable power. With refined cable routing and high-performance disc brakes, the Gain M40 is designed for riders who demand low maintenance, efficiency, and style on every journey. Embrace innovation and elevate your cycling experience with a bike that combines cutting-edge engineering with exceptional ride quality.
Specifications
| Category | Specification |
|---|---|
| Frameset | |
| Frame | Orbea Gain Carbon OMR monocoque, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug |
| Fork | Gain OMR carbon, 700x35 max tyre, Flat Mount disc, Thru Axle 12x100mm |
| Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Ebike System | |
| Battery | Mahle iX350 36V 353Wh |
| Motor | Mahle motor hub X20, ALC |
| Display | Mahle Pulsar One monochrome ANT+ LEV |
| Charger | Mahle Active Charger up to 4A |
| Remote | Mahle ONE Head Unit (BT/ANT+) |
| Drivetrain | |
| Crankset | Shimano Cues U6040 34x50t |
| Shifters | Shimano U6030 |
| Cassette | Shimano CS-LG400 11-39t 10-Speed |
| Rear Derailleur | Shimano Cues U6020 SGS Shadow |
| Front Derailleur | Shimano Cues U6030 |
| Chain | Shimano LG500 |
| Cockpit | |
| Handlebar | OC Road Performance RP21 Alu SL, Reach 80, Drop 125 |
| Stem | OC Road Performance RP10, -8º |
| Brakes | |
| Brakes | Shimano U6030 Hydraulic Disc |
| Wheels | |
| Wheelset | Alloy, Tubeless, 700c, 21c |
| Tyres | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Front Axle | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Axle | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Components | |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Saddle | Fizik Aliante R5 |
| Accessories | |
| Front Light | Rear position light, on saddle clamp, COB LED, On/Off, 12 Lumen, STVZO |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
Sizing guide and Geometry chart
| Size | Height (cm) | Height (ft & in) |
|---|---|---|
| XS | 155-166 cm | 5'1" - 5'5" |
| S | 167-172 cm | 5'6" - 5'8" |
| M | 173-179 cm | 5'9" - 5'10" |
| L | 180-185 cm | 5'11" - 6'1" |
| XL | 186-191 cm | 6'2" - 6'3" |
| XXL | 192-207 cm | 6'4" - 6'9" |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 430 | 460 | 490 | 515 | 540 | 570 |
| Top Tube (EFF) | 516 | 535 | 555 | 569 | 587 | 602 |
| Head Tube | 113 | 136 | 158 | 181 | 203 | 225 |
| Chainstay | 415 | 415 | 415 | 415 | 415 | 415 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| BB Height | 263 | 263 | 263 | 265 | 265 | 265 |
| Wheelbase | 984 | 998 | 1011 | 1022 | 1035 | 1047 |
| Head Angle | 71º | 71.2º | 71.5º | 72º | 72.2º | 72.5º |
| Seat Angle | 74.5º | 74º | 73.5º | 73.5º | 73.2º | 73.2º |
| Rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Standover | 728 | 756 | 782 | 803 | 830 | 844 |
| Reach | 370 | 378 | 386 | 394 | 402 | 410 |
| Stack | 525 | 547 | 569 | 591 | 613 | 635 |
| Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
| Trail | 64.5 | 63.3 | 61.4 | 58 | 57 | 55 |
