AllTrail 5 27.5 Extra Large (Second Hand)

Available in store: Check availability

Available in store

Close
+-
€3.600,00
Add to cart
Delivery time: Please allow 3-10 days for bicycle delivery as we have to build it, quality check it fully and repack it for shipping. Assembly of the front wheel and handlebars will be required. Bikes for Home Assembly will be shipped within 1-2 working days
1 in stock
  • Overview
    • Are you looking for an electric full-suspension bike with which you can master steep uphills just as smoothly as demanding downhills? Then the AllTrail 5 27.5 is your perfect companion for any terrain.

Product details

Condition: Like new, only ridden for 396km.



The Yamaha PW-ST drive with an integrated 630 Wh battery provides reliable and powerful support. 140 mm suspension travel at the front and 150 mm at the rear, 4-piston disc brakes, and 27.5" wheels with Plus tyres offer you riding fun and safety in every situation.



Key Features:

  • FRAME MATERIAL: Aluminium
  • DRIVE UNIT: Yamaha PW-ST System, 70Nm, 25km/h
  • BATTERY: InTube 630Wh
  • FORK: RockShox 35 Silver, Travel: 140mm

Specifications:

  • ENGINE

    Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h

  • DISPLAY

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • BATTERY

    InTube, 630 Wh

  • FRAME FAMILY

    Haibike, FullSeven Yamaha i630, Aluminium 6061

  • FORK

    RockShox, 35 Silver, Steel spring, 140 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • DAMPER

    RockShox, Deluxe Select, Air, Trunnion Mount

  • CRANK ARM

    Haibike Components, The Crank +, Aluminium

  • BRAKE (FRONT)

    Tektro, Orion M745, 4-piston disc brake

  • BRAKE (REAR)

    Tektro, Orion M745, 4-piston disc brake

  • TUBE

    Presta valve

  • RIM

    Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium

  • CLAMPING RING

    Internal hexagon, 34.9 mm

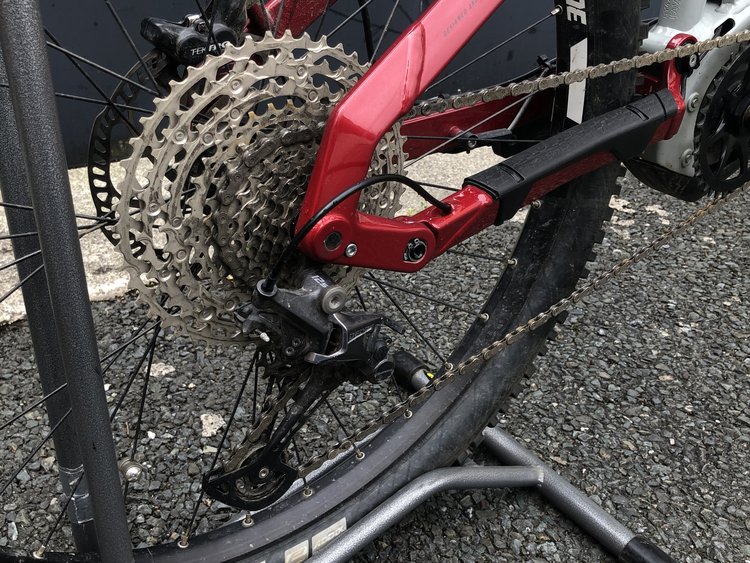

  • REAR DERAILLEUR

    Shimano, Deore M6100

  • SHIFT LEVER

    Shimano, Deore M6100, Trigger switch

  • BOTTOM BRACKET

    integrated in the motor

  • SPROCKET

    Shimano, M6100, 10 - 51 teeth

  • CHAIN

    Shimano, CN-M6100

  • CHAINRING

    Steel, 38 teeth

  • CHAIN GUIDE

    Nylon directmount

  • BRAKE LEVER

    Tektro, Orion M745, Aluminium

  • BRAKE DISC (FRONT)

    Tektro, TR203, 203 mm

  • BRAKE DISC (REAR)

    Tektro, TR180, 180 mm

  • TYRE

    Schwalbe, Nobby Nic Performance, 65-584, 27.5 x 2.6 inch

  • FRONT WHEEL HUB

    Haibike Components, TheHub ++, 6-bolt standard

  • REAR WHEEL HUB

    Haibike Components, TheHub ++, 6-bolt standard

  • SPOKES

    Sapim, Leader

  • HANDLEBAR

    Haibike Components, TheBar ++, 780 mm

  • STEM

    Haibike Components, TheStem ++, A-head, 31.8 mm, 7.0 degrees

  • HEADSET

    Feimin, A-Head Tapered, Ball bearing

  • SADDLE

    Selle Bassano, Reko R2 E-Sport

  • SEAT POST

    Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm

  • PEDALS

    Freeridepedal, Aluminium, with Reflector
