SUPERFOXY Carrera Blue M

Article code 010.24146
Available in store: Check availability

Available in store

Close
+-
€4.399,00
Add to cart
Delivery time: Please allow 3-10 days for bicycle delivery as we have to build it, quality check it fully and repack it for shipping. Assembly of the front wheel and handlebars will be required. Bikes for Home Assembly will be shipped within 1-2 working days
1 in stock
  • Overview
    • The Superfoxy is built for big descents without sacrificing the ability to tackle technical climbs. This super enduro bike combines downhill performance with climbing efficiency, making it perfect for thrilling bike park rides and demanding trail.

Product details

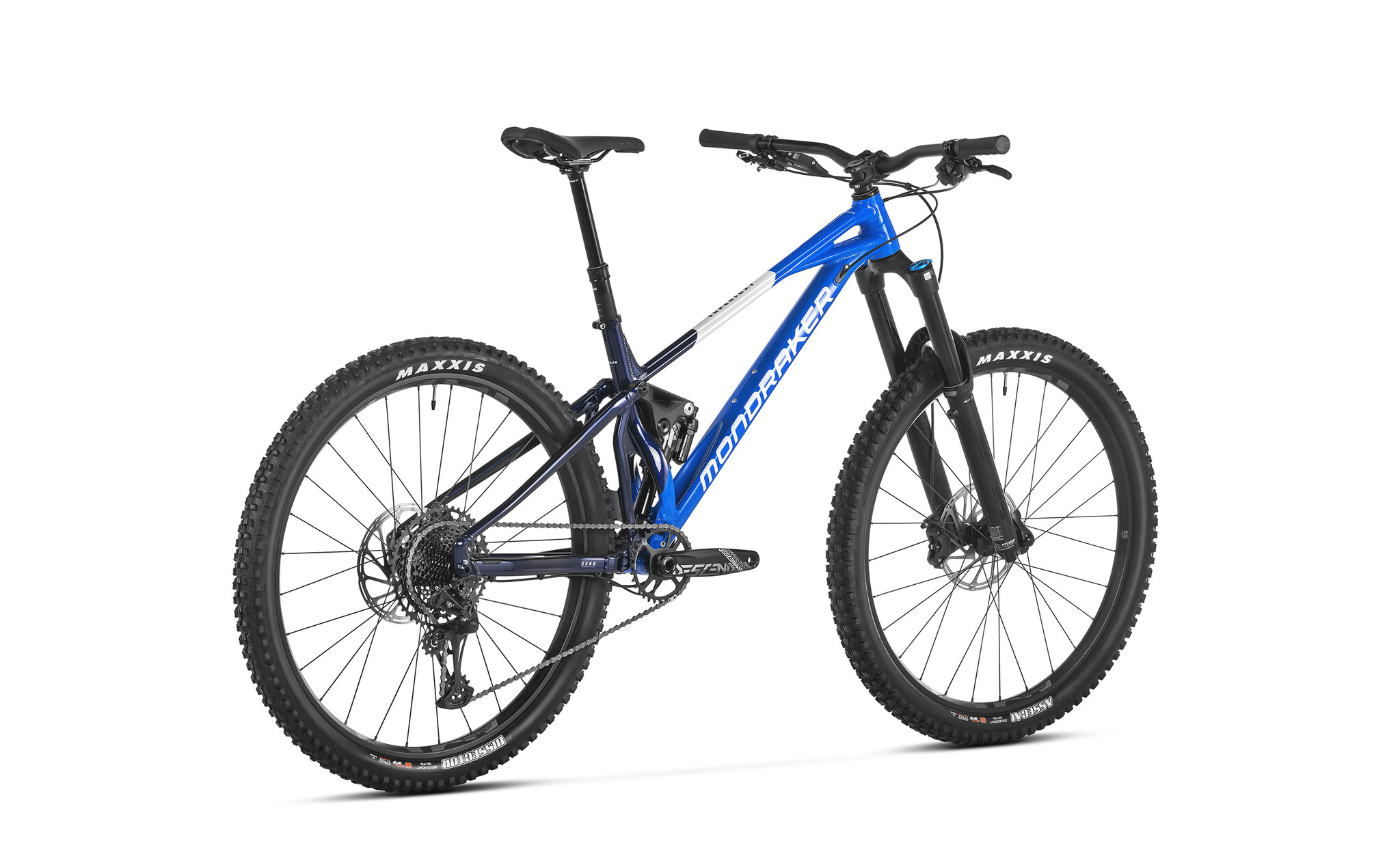

The Mondraker Superfoxy is a full suspension bike designed for riders seeking top-level downhill performance with the versatility for technical climbs. Blending the agility of a trail bike with the stability of a downhill rig, the Superfoxy thrives on adrenaline-fueled descents and challenging terrains. Built with Mondraker’s Super Enduro pedigree, this bike is at home in bike parks and wild trails alike, offering precise control and impressive speed. Its advanced suspension design delivers smooth, predictable handling, allowing you to tackle climbs efficiently and enjoy every thrill on the way down.



Technical specs

Category Specifications
Sizes S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear Shock Fox Float-X LV Performance, 205x65mm, compression 2-position lever, low-speed rebound, air preload, Trunnion top mount, 22.2x10mm bottom bushings
Shock Settings Medium compression, medium rebound, 0.2 air volume spacer
Fork Fox 38 29 Float RHYTHM 170mm, GRIP damper, tapered steerer tube, Boost 15x110mm axle, offset 44mm, 3 positions with micro-adjust compression, low-speed rebound, air preload
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips Onoff Twin, 1 lock-on, 135mm
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Front Brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever Sram DB8, tool reach adjust, lever pivot bushings
Rims e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front Tire Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear Tire Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, direct mount chain ring, S: 170mm, M: 170mm, L: 175mm, XL: 175mm, CL 56.5
Rings 32T, CNC-machined alloy, X-SYNC 2
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm, superboost
Chain Sram SX Eagle, 12s, Powerlock
Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette Sram PG-1210, 11-50T, 12s
Derailleur Hanger Mondraker M068
Weight 17.4 kg



Geometry Chart

  Frame size S M L XL
A Seattube length 380 mm 420 mm 470mm 510 mm
B Toptube length 605 mm 625 mm 650 mm 670 mm
C Bottom bracket drop -20 mm -20 mm -20 mm -20 mm
D Bottom bracket height 350 mm 350 mm 350 mm 350 mm
E Chainstay length 445 mm 445 mm 445 mm 445 mm
F Seat tube angle 71° 71° 71° 71°
G Effective seattube angle 76° 76° 76° 76°
H Headtube angle 65° 65° 65° 65°
I Fork Offset 44 mm 44 mm 44 mm 44 mm
J Wheelbase 1224 mm 1245 mm 1273 mm 1293 mm
K Headtube length 100 mm 110mm 130 mm 130 mm
L Reach 450 mm 470 mm 490 mm 510 mm
M Stack 621 mm 621 mm 639 mm 639 mm



Size Chart
